OP27GPZ

**OP27GPZ** – Analog Devices

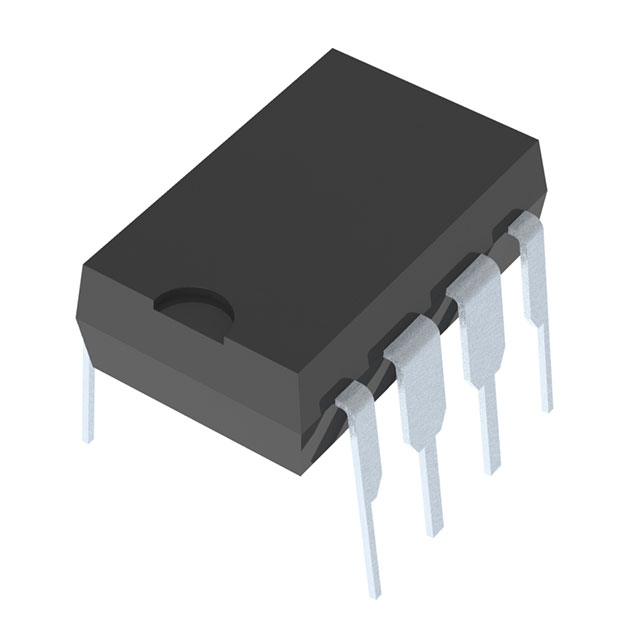

Low-Noise Precision Operational Amplifier – DIP-8

- Type: Single precision bipolar op-amp
- Input Offset Voltage: 25 µV typ, 100 µV max
- Input Bias Current: 15 nA typ
- Input Voltage Noise: 3.2 nV/√Hz @ 1 kHz
- Open-Loop Gain: 1,800,000 typ
- Slew Rate: 2.8 V/µs
- Unity-Gain Bandwidth: 8 MHz
- Supply Voltage Range: ±4 V to ±18 V
- Supply Current: 5 mA typ
- Output Swing: ±13 V typ on ±15 V
- PSRR/CMRR: 126 dB / 120 dB
- Package: 8-pin PDIP (PZ), through-hole, Pb-free
- Temperature Range: –40 °C to +85 °C (industrial)
