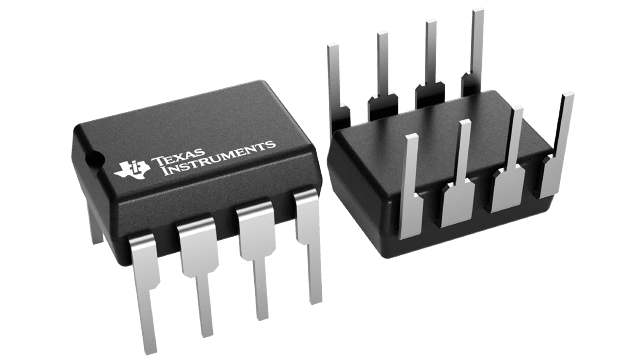

OPA445AP
✅ In stock
Condition
New
Warranty Information
30 Day Warranty Included. Extended warranty is available. Contact your sales rep for more information.
Description
**OPA445AP** – Texas Instruments
High-Voltage, High-Slew-Rate Operational Amplifier – DIP-8
- Type: Single FET-input op-amp
- Supply Voltage Range: ±10 V to ±45 V (90 V total)
- Output Voltage Swing: ±42 V typ on ±45 V supplies
- Slew Rate: 15 V/µs
- Unity-Gain Bandwidth: 2 MHz
- Input Offset Voltage: 1 mV typ, 3 mV max
- Input Bias Current: 10 pA typ (FET input)
- Open-Loop Gain: 110 dB typ
- Output Current: ±15 mA guaranteed, ±30 mA typical
- Quiescent Current: 4.2 mA typ
- Package: 8-pin PDIP (AP), through-hole
- Temperature Range: –40 °C to +85 °C (industrial)
