P0903BD
✅ In stock
Condition
New
Warranty Information
30 Day Warranty Included. Extended warranty is available. Contact your sales rep for more information.
Description

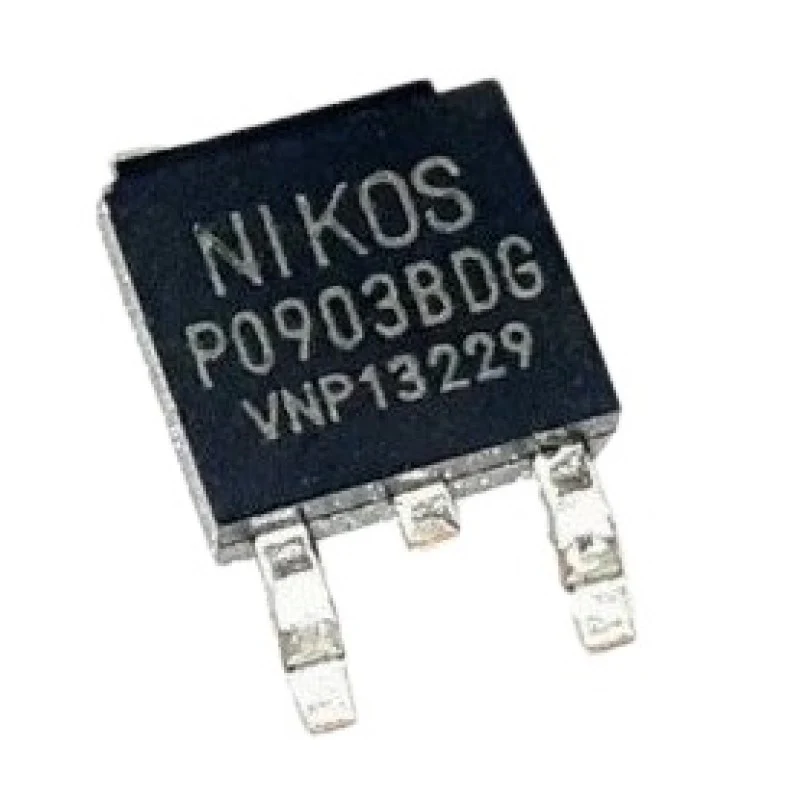

**P0903BD** – NIKO-SEM
N-Channel Enhancement-Mode MOSFET – 25 V, 90 A, 3.0 mΩ (TO-252 / DPAK)
- Vdss: 25 V
- Rds(on) max:
– 3.0 mΩ @ Vgs = 10 V
– 4.2 mΩ @ Vgs = 4.5 V (true logic-level)
- Id continuous: 90 A (Tc = 25 °C)
- Qg total: 68 nC typ
- Avalanche rated
- Package: TO-252 (DPAK), surface-mount
- Temperature Range: –55 °C to +175 °C
